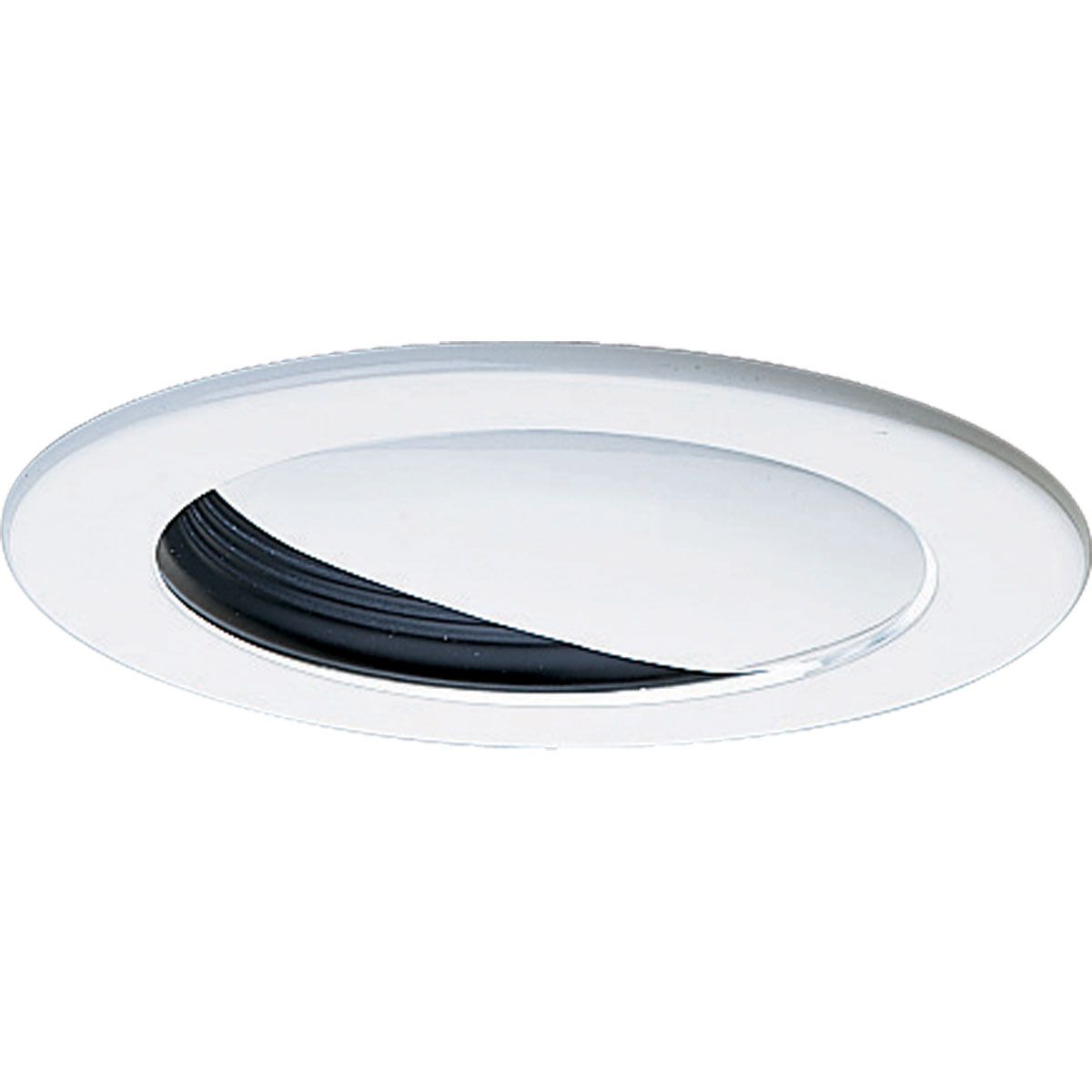

- Progress: 360 positioning, tilt 20. 5″ outside diameter
- Juno: 50-Degree vertical adjustment

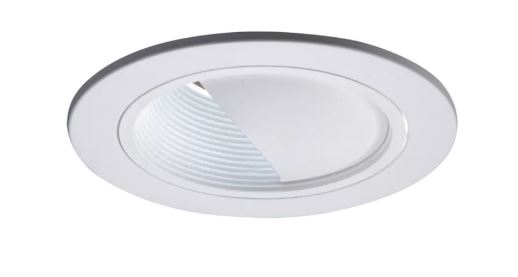

- Halo: 36° rotation in housing- White baffle
- Bright white powdered painted metal exterior flange
- Black interior baffle
- Incandescent 40W R16
- 2700K
- Progress: IC rated housing
- All other manufactures: Non IC housing
Benefits:
- No light leaks around trim flange
- Black baffle reduces ceiling glare producing a more comfortable light
- Reflectances: 80% Ceil., 50% Wall, 20% Floor
Design Concepts:
- Mounting and spacing distance should be 2-3 feet for ceilings up to nine feet high.
- Mounting and spacing distance should be 3-4 feet for ceilings between nine and eleven feet high.
- Wall wash tends to “smooth out” a wall and minimize its texture due to the even illumination
